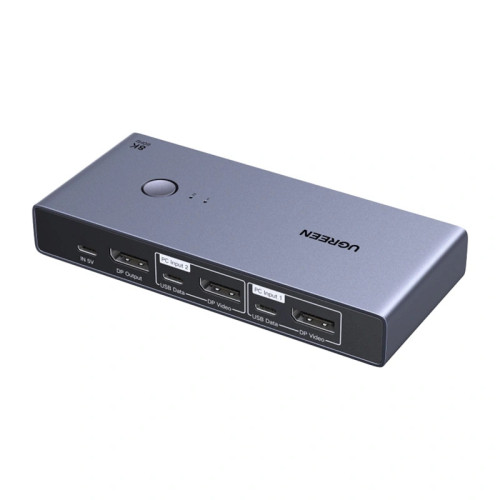

UGREEN CM695 DisplayPort KVM Switch 2 Inputs 1 Output
Description
UGREEN CM695 DisplayPort KVM switch lets you operate two computers with one monitor, keyboard, mouse and other USB devices.
The model has two DisplayPort inputs and one video output. It is useful when changing workstations without moving accessories around.
One-button switching
You can change the active computer directly with the button on the housing. You can also connect an external desk controller to the Mini-USB port marked Control and place the switch in a less accessible spot. The controller stays on your desk, and changing computers takes just one click.

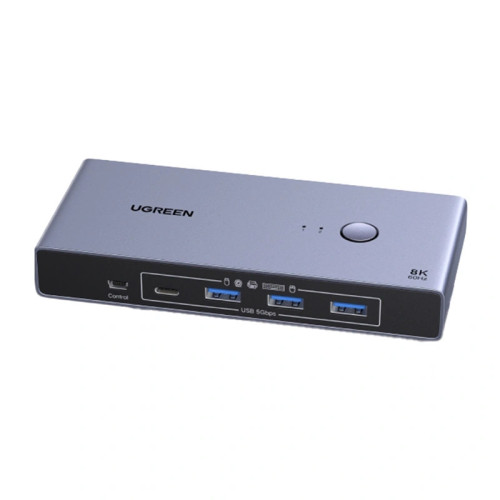

USB ports for accessories
The keyboard, mouse, USB flash drive and external drive can stay connected to the switch. USB 3.0 provides data transfer speeds of up to 5 Gb/s, so copying larger files between storage devices and the selected computer is convenient. Each computer has its own DisplayPort connection and a USB-C connection for data transmission.
Audio and systems
The switch supports audio up to 24 bit/192 kHz and the LPCM, DTS and DSD formats. Channel configurations are 2.0, 2.1, 5.1 and 7.1. It works with Windows, macOS and Linux, so you can connect two computers running different platforms.
Specifications
| Model | CM695 |
| Type | DisplayPort 1.4 KVM switch, 2 computers / 1 monitor |
| Computer inputs | 2 × DisplayPort, 2 × USB-C for data transmission |
| Video output | 1 × DisplayPort |
| Peripheral ports | 3 × USB-A, 1 × USB-C |
| Controller port | 1 × Mini-USB, dedicated exclusively to the desk controller |
| Power input | USB-C, 5 V / 3 A max. |
| USB transfer speed | up to 5 Gb/s |
| Maximum resolution | 8K@60Hz |
| HDCP version | HDCP 2.3, backward compatible |
| Video formats | RGB, YCbCr 4:4:4, YCbCr 4:2:2, YCbCr 4:2:0 |
| Supported technologies | 3D, HDR10, HDR10+, VRR |
| Maximum audio sampling rate | 24 bit / 192 kHz |
| Audio formats | LPCM, DTS, DSD |
Notes
The Mini-USB connector marked Control is intended solely for connecting the controller and does not function as a universal data transfer port or a power input.
The USB-C ports located on the computer input side are used for USB data transmission and do not replace the DisplayPort connection responsible for transmitting video.
Price
€59,26Express Checkout 1-Click
Description
UGREEN CM695 DisplayPort KVM switch lets you operate two computers with one monitor, keyboard, mouse and other USB devices.
The model has two DisplayPort inputs and one video output. It is useful when changing workstations without moving accessories around.
One-button switching
You can change the active computer directly with the button on the housing. You can also connect an external desk controller to the Mini-USB port marked Control and place the switch in a less accessible spot. The controller stays on your desk, and changing computers takes just one click.
USB ports for accessories
The keyboard, mouse, USB flash drive and external drive can stay connected to the switch. USB 3.0 provides data transfer speeds of up to 5 Gb/s, so copying larger files between storage devices and the selected computer is convenient. Each computer has its own DisplayPort connection and a USB-C connection for data transmission.
Audio and systems
The switch supports audio up to 24 bit/192 kHz and the LPCM, DTS and DSD formats. Channel configurations are 2.0, 2.1, 5.1 and 7.1. It works with Windows, macOS and Linux, so you can connect two computers running different platforms.
Specifications
| Model | CM695 |
| Type | DisplayPort 1.4 KVM switch, 2 computers / 1 monitor |
| Computer inputs | 2 × DisplayPort, 2 × USB-C for data transmission |
| Video output | 1 × DisplayPort |
| Peripheral ports | 3 × USB-A, 1 × USB-C |
| Controller port | 1 × Mini-USB, dedicated exclusively to the desk controller |
| Power input | USB-C, 5 V / 3 A max. |
| USB transfer speed | up to 5 Gb/s |
| Maximum resolution | 8K@60Hz |
| HDCP version | HDCP 2.3, backward compatible |
| Video formats | RGB, YCbCr 4:4:4, YCbCr 4:2:2, YCbCr 4:2:0 |
| Supported technologies | 3D, HDR10, HDR10+, VRR |
| Maximum audio sampling rate | 24 bit / 192 kHz |
| Audio formats | LPCM, DTS, DSD |
Notes
The Mini-USB connector marked Control is intended solely for connecting the controller and does not function as a universal data transfer port or a power input.
The USB-C ports located on the computer input side are used for USB data transmission and do not replace the DisplayPort connection responsible for transmitting video.
